Barbed Rivet 6.4 (HD) 1.6 - 6.4 (PT) Nylon 6/6 (PA 6/6) Black
Rivet with barbed protrusions along it's shank that provide an efficient fastening solution for joining a range of panel thicknesses and materials. Can be used as a rivet and a screw. Fast and easy assembly.
Essentra part number
10224540
Material Flammability Standard
UL94 V-2
Colour
Black
Maximum Hole Diameter
6.4mm
Minimum Panel Thickness
1.6mm
Maximum Operating Temperature
85°C
Minimum Operating Temperature
-40°C
Material
Nylon
UL/CSA Description
UL E70062

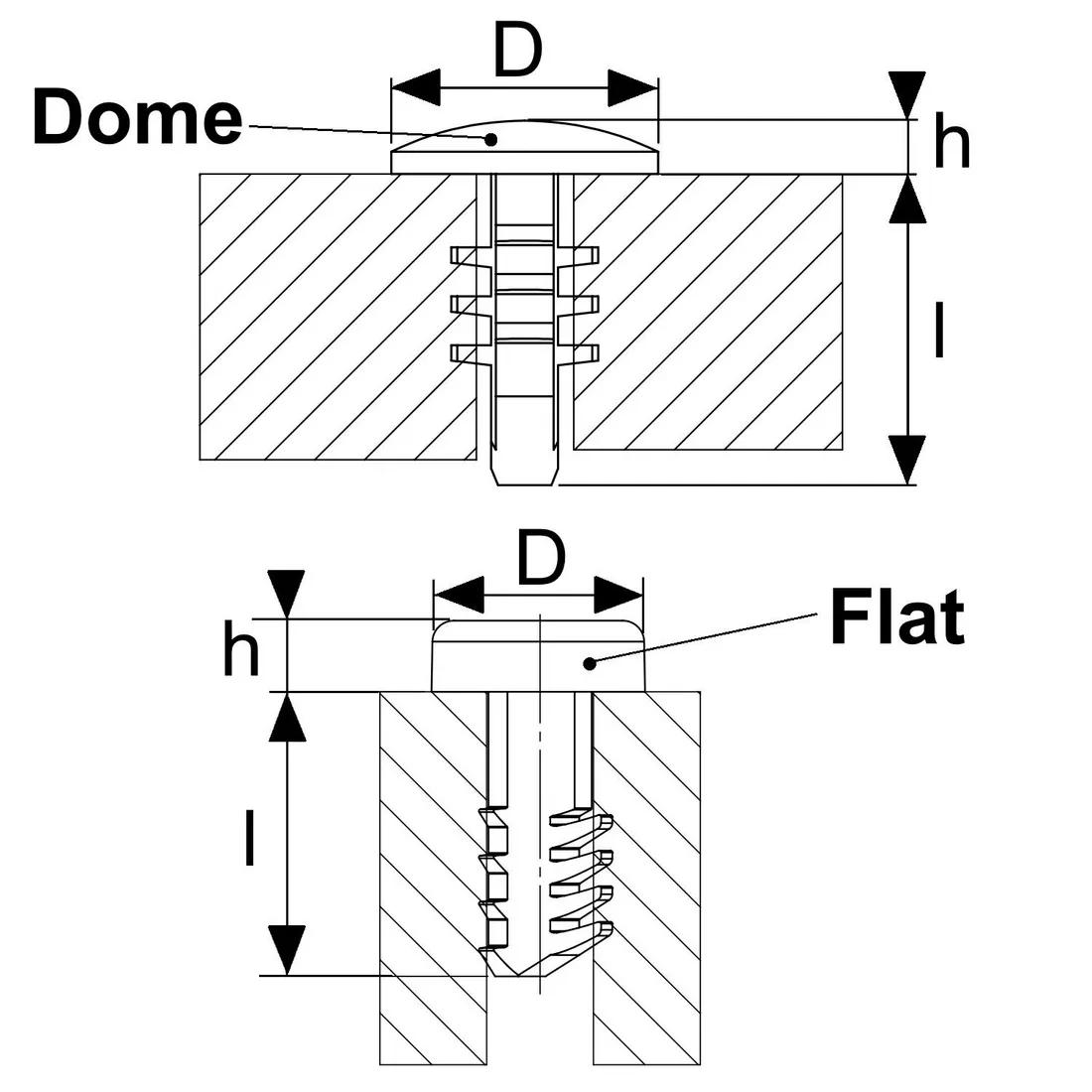

Anchor Length
0.391in
Maximum Panel Thickness
6.4mm
Head Diameter
0.700in
Head Height
0.100in
